Buehler

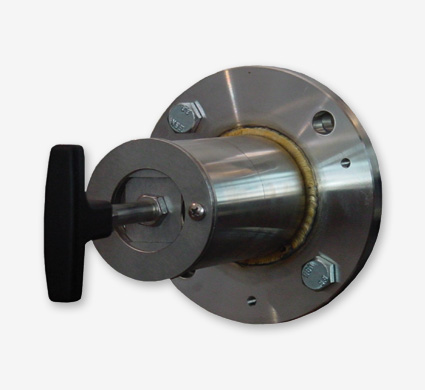

Buehler GAS 222.10 Sample gas probe
- Unheated probe with outlet filter for indoor installation.
- The filter element can easily be removed by turning the handle 90°.
- For dust loads up to 2g/m³, non-condensable gases.
- The probe has no innate ignition source and is therefore suitable for use in Ex areas.
- Base unit
- Including flange seal and screws
Buehler GAS 222.11 Ex2 Sample gas probe
- Versions with Atex and IECEx approval
- Unheated probe with shut-off valve and/or inlet filter
- The filter element can easily be removed by turning the handle 90°
- For dust loads up to 2 g/m³, non-condensable gases.
- Combined with inlet filter up to 10 g/m³ and higher
- The probe is suitable for use in explosive areas

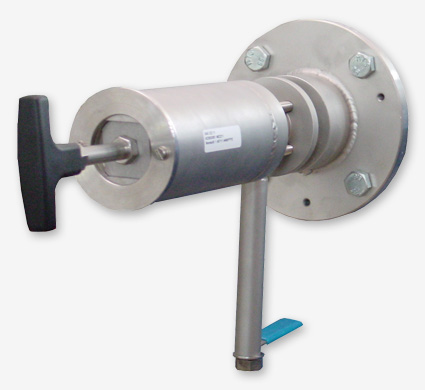

Buehler GAS 222.11 Sample gas probe
- Unheated
- Base unit with manual shut-off valve
- For in-situ and outlet filter
- With blowback connection
- The outlet filter can easily be removed by turning the handle 90°.
- For dust loads up to 2g/m³, non-condensable gases. Combined with inlet filter up to 10g/m³ and higher
- Including flange seal and screws
The probe has no innate ignition source and is therefore suitable for use in Ex areas.

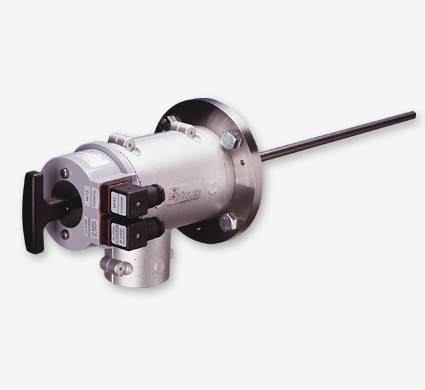

Buehler GAS 222.15 MA Sample gas probe
- Heated probe with downstream filter
- The downstream filter can easily be removed by turning the handle 90°.
- Increased degree of protection (IP66) due to the specially developed silicone protective cover
- Particularly suitable for use in high-vibration applications (such as marine) due to special design features
- The probe body and the area around the screw connection for the heated sample gas line are completely insulated
- Self-regulating heater to approx. 180 °C with low temperature alarm.
- For dust loads up to 2 g/m³
