Comitronic-Bti Z-LOGGER-SEAL Datalogger
Datalogger,, alarm module, webserver with built-in I/O
Z-LOGGER-SEAL is an alarm control module integrated with a data logger, a web server and backup batteries. It supports Modbus TCP-IP over Ethernet 10/100 and Modbus RTU over RS485. Z-LOGGER manages csv log files, process alarms, analog thresholds, counters, digital inputs. The module is provided by Nr 2 analog inputs current (0-20 mA) and voltage (0-30V), Nr 4 configurable digital inputs NPN-PNP, Nr 4 32 bits max 10 Hz counters and totalizers, Nr 2 relay outputs NO / NC max 2 A.
Additional information
ZÍSKEJTE CENU
Chcete-li obdržet nabídku, zašlete svou žádost na adresu info@prumyslovy-distributor.cz a uveďte požadované pozice a podrobnosti o společnosti.
Specification
| ORDER CODE : | Z-LOGGER-SEAL |
| DESCRIPTION: | Datalogger, alarm module, webserver with built-in I/O |
| POWER SUPPLY: | 11..40 Vdc; 19..28 Vac (clamp / bus) |
| PROCESSOR: | CPU 100 MHz |
| MEMORY: | 2 MB flash - 128 kB RAM |
| COMMUNICATION PORTS: | 2 x RS485; 1 x mini USB 2.0 B type; N1 x RJ45 Fast Ethernet 10/100 Mbps |
| I/O CHANNELS: | Nr 2 analog input mA/V; Nr 4 digital input NPN-PNP, Nr 4 totalizers/counters @ 32 bit max 30 Hz; Nr 2 relay output NC/NO max 2 A |
| LOG: | Csv file on microDC/micro SD HC card max 32 GB or via ftp |
| SETTINGS: | Software SEAL / EASY LOG VIEWER, Web server, Dip-switch |
| DIMENSION WXHXD: | 35x100x112 mm |
Related products
Comitronic-Bti MY2S-0-0-M-B MY2S
MyALARM2 - GSM/GPRS datalogger, Security Audio version
MyALARM2 SECURITY AUDIO (MY2S) is a GSM / GPRS communicator operating autonomously or as expansion for anti-theft and anti-intrusion systems due to ease of installation and programming. MY2S allows sending SMS or voice alarm messages (with SIM Voice) as well as fast commands and acknowledge alarms via DTMF tones. The device is equipped with the anti-jamming system, dialer number identification, self-control battery status, anti-theft system activattion.
*MYALARM2 settings made with earlier versions of EASY MYALARM2 3.12 may not be compatible with the latest version.

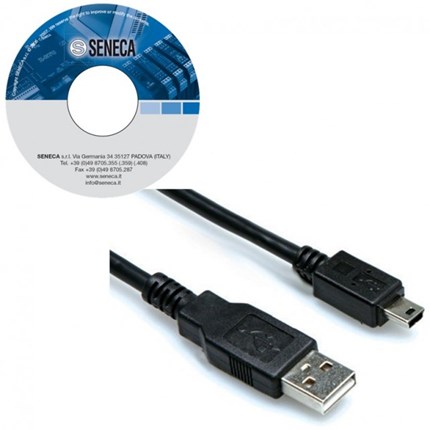

Comitronic-Bti KIT-USB Programming tool
