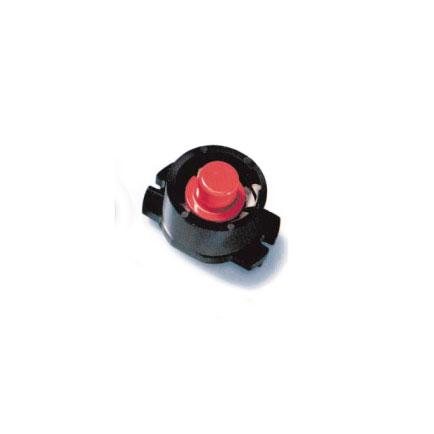

KLIXON® Phenolic Motor Protectors are equipped with a bimetallic snap acting disc, on which the contacts are mounted, and through which the current flows. If overheating conditions occur, the heating effect of the current flow through the Klixon disc and the influence of motor heat will cause the disc temperature to rise. When the disc reaches the calibrated setpoint, the KLIXON® protector automatically opens and shuts down the motor, limiting the winding and shell temperature. When the motor has cooled to an acceptable operating level, allowing the protector to cool to its reset temperature, the KLIXON® protector resets automatically to a closed contact position allowing the motor to restart. Manual reset versions are also available for applications where automatic restarting may be hazardous to equipment or operations.
Features
- Normally closed “make or break” KLIXON® contact system, which is operated by a snap action disc, is sensitive to both temperature and current.
- Precision calibration – temperature calibrated and inspected under controlled conditions for dependable performance.
- Automatic or manual reset series available
- Easy to install
- VDE certificate with production surveillance, overheating protector. 37 amperes maximum locked rotor 230 VAC, File 4464.4-4510-1013, License No. 3938 UG for 3/4” M.P. only.
- Inherent protection devices for approximately 1/2 to 5 h.p. motors used in applications such as industrial motors, agricultural equipment, well and sump pumps, fans, air conditioners, refrigerators, home appliances, etc.
- When properly applied, protector shuts off motor when temperature exceeds maximum safe level due to an overload or stalled (locked rotor) condition.
