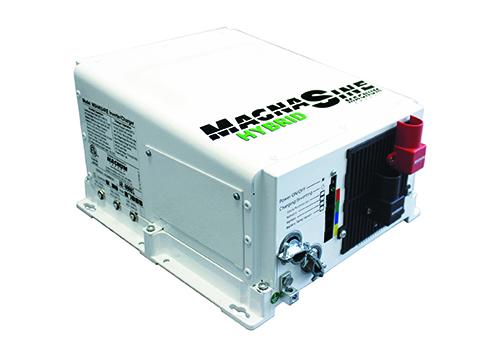

The MSH-RE Series Inverter / Charger from Sensata | Magnum-Dimensions – a pure sine wave inverter that combines the tried and tested engineering of Sensata’s MS line with hybrid technology to make it an optimal choice for your renewable and backup power needs. Hybrid technology: Most inverters only use one source of energy to power loads, either from incoming AC power – utility or AC generator – or from the batteries.
The MSH-RE Series combines the energy from both sources to power loads. This allows the inverter to recharge the batteries when there is surplus power or deliver more power to the loads if they require more than the AC input can supply by itself.
Load support: Load support parallels the inverter output with incoming AC sources allowing it to run larger loads from smaller generators
Features
- Pure sine wave – Power your T.V.s, stereos, plasma screens, and other sensitive electronics without worry. The pure sine wave inverter and power factor corrected charger provide clean, reliable inverter power with low total harmonic distortion (THD) of less than 5%.
- Easy-to-install – Install the MSH-RE Series in four easy steps: simply connect the inverter’s output to your distribution circuits or electrical panel, connect your utility power cable to the inverter’s easy-to-reach terminal block, connect the batteries, and switch on the power.
- Dual AC inputs – The MSH-RE Series comes with two 60 amp AC inputs – a grid input at 60A and a generator input at 60A.
- Accessible design – The extra large AC access cover with terminal screw block and 360° DC connection terminals with covers make this inverter more accessible when it needs to be.
- Interchangeable – The MSH-RE is interchangeable with the Magnum MS Series and uses the same accessories as the MS Series.
- Lightweight – The lightweight aluminum base and cover also provides noise reduction and corrosion resistance.
- Multiple ports – The MSH-RE Series provides multiple ports, including an RS485 communication port for network expansion, and a remote port.
- Convenient switches – The MSH-RE Series comes with an on/ off inverter-mounted switch with an easy-to-read LED indicator.
- Buy with ease – The MSH-RE Series is backed by a three-year (36-month) limited warranty, and a five-year limited warranty when purchased with and installed on an MMP system.
